Product Data:
| Model | HKM-FC2D |
| Name | Two Drawer Vertical Cabinet |
| Product Size | H720 * W460 * D620mm |
| Package Size | H750 * W650 * D85mm = 0.0414CBM |
| Loading Qty | 1179 Pcs/40’HQ, 560 Pcs/20’GP |
| Material | Heavy gauge cold-rolled steel plate. |
| Pre-treatment | Water wash, chemical wash, phosphating. |
| Finish | Durable electrostatic powder coating. |
| Colour | Classic grey, two-tone option, or other customized colour. |
| Fittings | Index holder. |
| Accessories | 2 keys, assembly screws. |
- Knock-down and easy-to-assemble construction.
- Master-keyed central locking system from CYBER LOCK.
- Anti-tilt mechanism allowing one drawer to open at a time for safety purposes.
- Smooth full-extension metal ball-bearing runners.
- Internal full-length side strength support.
- 40 kg loading capacity for each drawer.
- Movable file bar for adapting to hanging files of different sizes.

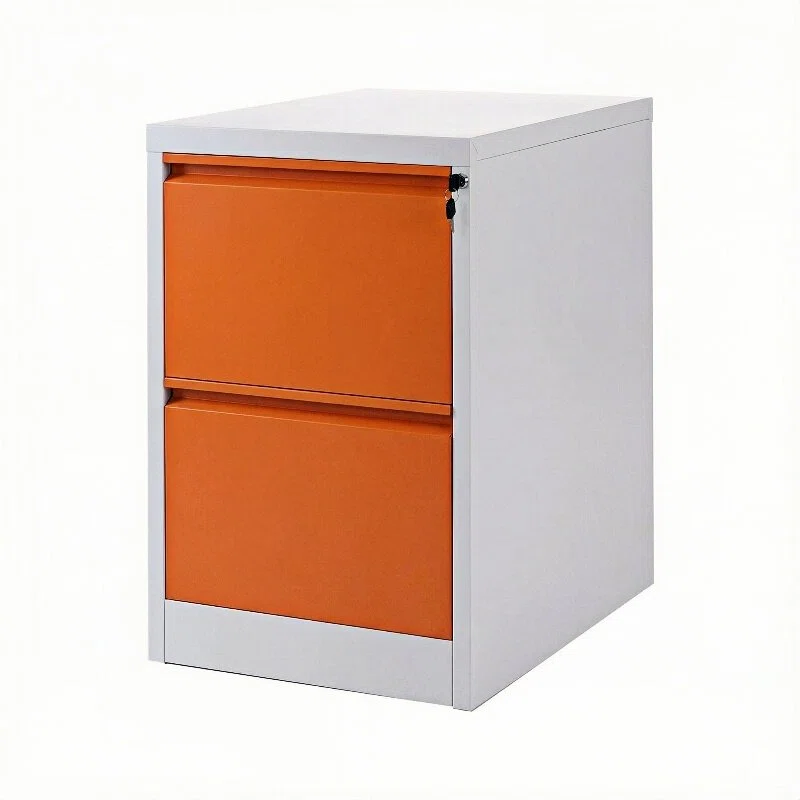

- Different colours available as options.
- Warranty: 10 years.
7 steps to assemble the Two Drawer Vertical Cabinet.
- Connect the front and back inserts with the left and right side plates using screws.
- Install the back plate from top to bottom.
- Connect the back plate with the left and right side plates using screws.
- Install the top plate as shown in the picture.
- Install the lock rod.
- Install the outer rails.
- Install the drawers as shown in the picture (lock opening).
