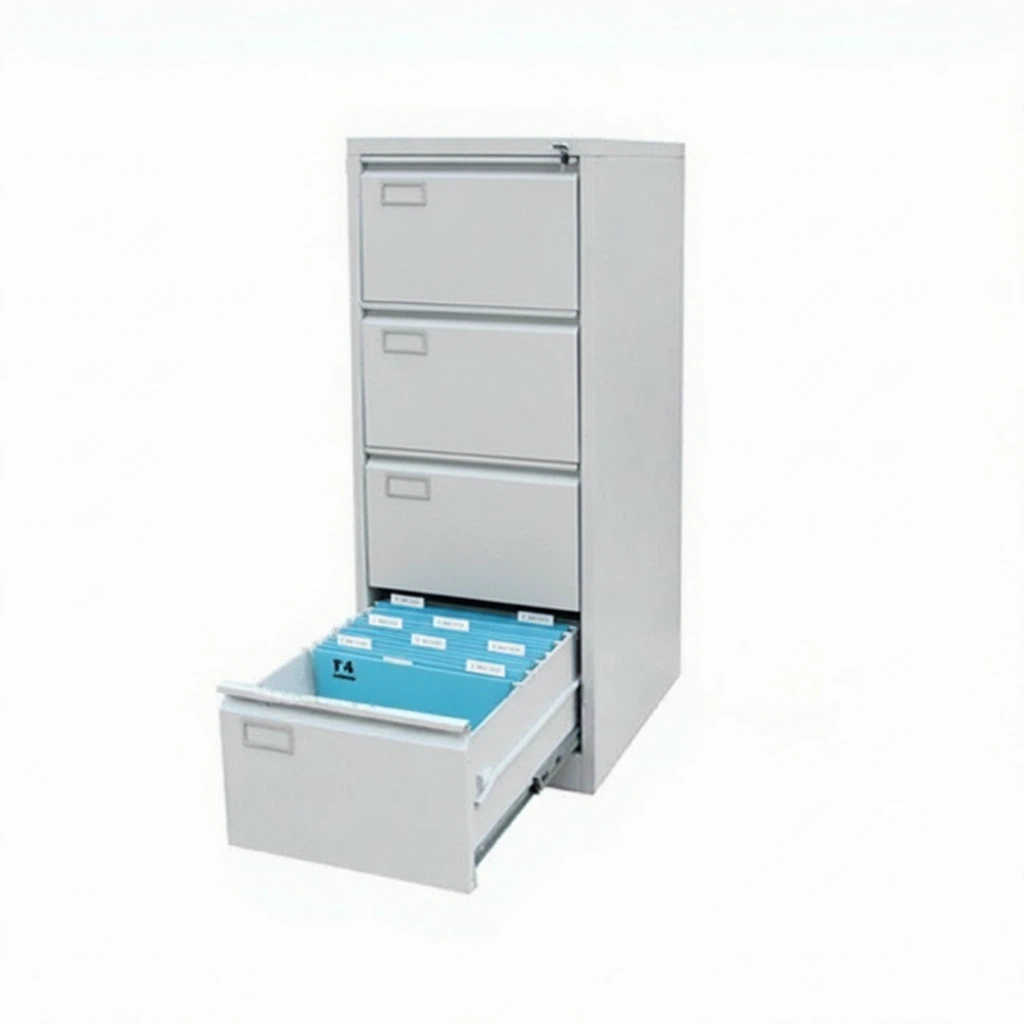

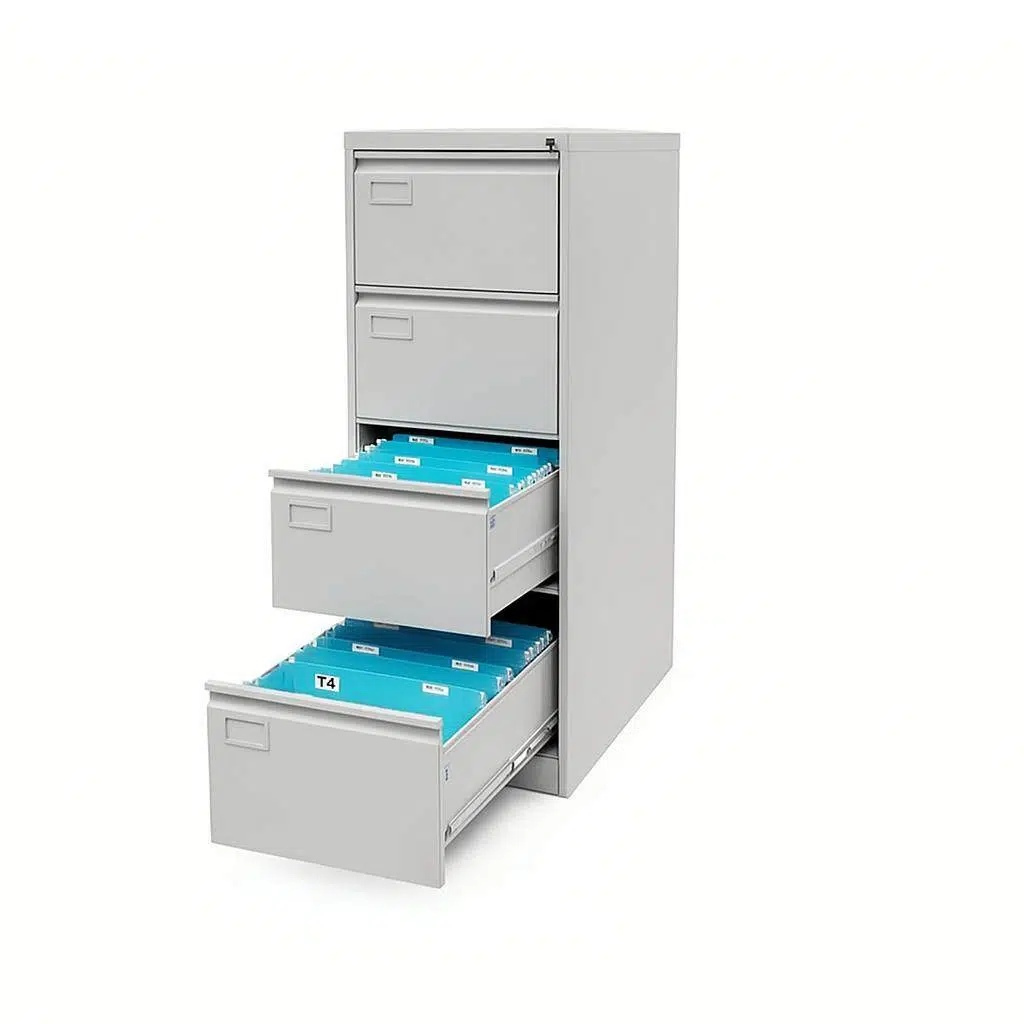

4-Drawer Filing Cabinet

Product Data:

Model HKM-FC4D
Name 4-Drawer Filing Cabinet
Product Size H1320 * W460 * D620mm
Package Size H1350 * W650 * D85mm = 0.0751CBM
Loading Qty 630 Pcs/40’HQ, 372 Pcs/20’GP

Get A Quote

Product Description

Material Heavy gauge cold-rolled steel plate.
Pre-treatment Water wash, chemical wash, phosphating.
Finish Durable electrostatic powder coating.
Colour Classic grey, two-tone options, or other customized colors.
Fittings Index holder.
Accessories 2 keys and assembly screws.

Product Features

  • Knock down and easy-to-assemble construction.
  • Master-keyed central locking system from CYBER LOCK.
  • Anti-tilt mechanism allowing one drawer to open at a time for safety purposes.
  • Smooth full-extension metal ball-bearing runners.
  • Internal full-length side-strength support.
  • 40 kg loading capacity for each drawer.
  • Movable file bar for adapting hanging files of different sizes.
  • Different colors for options.
  • Warranty: 10 years.

Assembly Video

6 steps to assemble the drawer of the 4-drawer filing cabinet.
  1. Install the folding drawer
  2. Install the front drawer seal as shown in the picture
  3. Install the drawer panel as shown in the picture
  4. Install the inner rails
  5. Install the hanging rods
  6. Fix the hanging rods with drawer panels as shown in the picture.


7 steps to assemble the 4-drawer filing cabinet.

  1. Connect the front and back inserts with the left and right side plates using screws.
  2. Install the back plate from top to bottom
  3. Connect the back plate and the left and right side plates using screws.
  4. Install the top plate as shown in the picture.
  5. Install the lock rod and holder as shown in the picture
  6. Install the outer rails
  7. Install the drawers as shown in the picture (lock opening).
