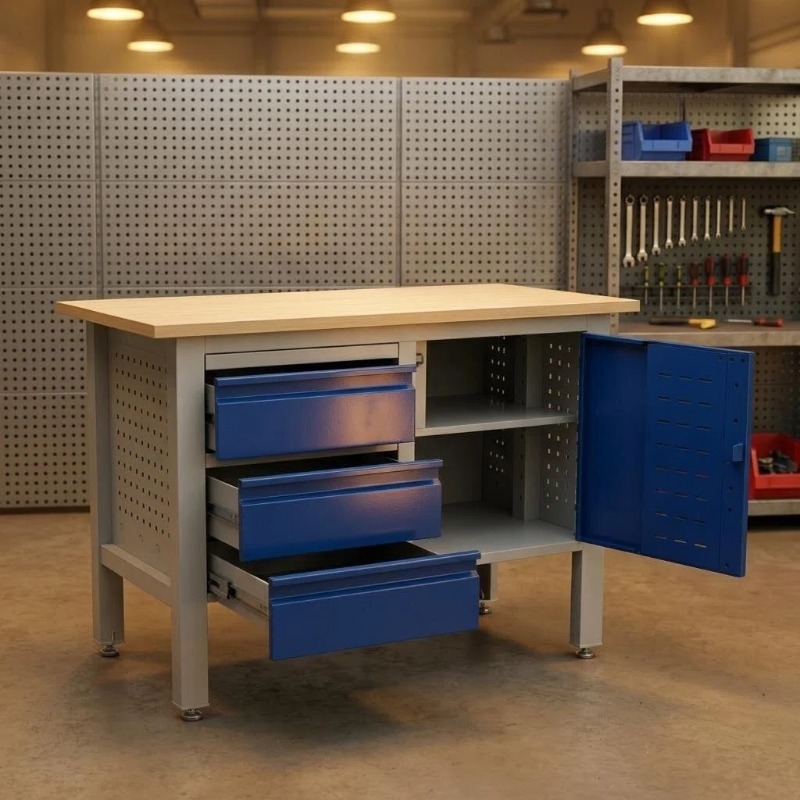

Workbench with Drawers
HKM-WB3D
Premium Steel Workbenches — Heavy-Duty Work Surfaces with Drawer Storage
GXHKM is a steel workbench manufacturer in China with 14+ years of metal furniture production. Our flagship workbench with drawers (HKM-WB3D) combines a heavy-duty steel frame, a choice of steel or wood work top, and integrated drawer storage — all built from SPCC cold-rolled steel with anti-oil powder coating. We supply factory-direct FOB Shenzhen / Guangzhou, custom sizes, and ODM / OEM branding. Standard orders ship in 15-25 days; custom in 25-35 days. MOQ is 10 pieces for stock and 50 for custom. Every unit carries a 3-year structural warranty and 10-year anti-rust warranty. GXHKM is ISO 9001, ISO 14001, and ISO 45001 certified and exports across Southeast Asia, the Middle East, Africa, and South America.
Steel Workbench Specifications
| Feature | Details |
|---|---|
| Steel grade | SPCC cold-rolled steel, heavy gauge |
| Frame thickness | 1.2-2.0 mm (box-section legs) |
| Load capacity | 500-2,000 kg (static, by frame spec) |
| Work top | Steel plate, 25 mm laminate, or 30 mm solid wood |
| Standard width | 1,200 / 1,500 / 1,800 / 2,000 mm |
| Standard depth | 600 / 750 mm |
| Standard height | 750 / 800 / 900 mm (adjustable feet) |
| Drawer storage | 2-5 drawers (WB3D), ball-bearing, 35 kg each |
| Back option | Pegboard panel, perforated panel, or plain back |
| Edge treatment | Rounded, anti-pinch bullnose |
| Anti-static top | Optional ESD top (ANSI/ESD S20.20) above MOQ |
| MOQ | 10 pcs (stock) / 50 pcs (custom) |
| Lead time | 15-25 days (stock) / 25-35 days (custom) |
| Warranty | 3 years structure / 10 years anti-rust |
| Certifications | ISO 9001 / ISO 14001 / ISO 45001 |
| Trade terms | FOB Shenzhen / Guangzhou, CIF, DDP; T/T 30/70, L/C at sight (>USD 10,000) |
Applications
Assembly and packing lines. HKM-WB3D holds components, tools, and in-process parts at the line side. 500-2,000 kg frame rating supports presses, vices, and test rigs without flex — unlike lighter 200-300 kg workbenches that bend and sway under tooling loads.
Repair and maintenance bays. Integrated drawers keep tools at hand; pegboard back hangs frequently used instruments. Adjustable feet level on uneven floors up to 30 mm difference — common in older buildings and outdoor temporary workshops.
Laboratories and cleanrooms. Laminate or solid wood tops resist solvents and wipe clean with hospital-grade disinfectant; optional anti-static top available for ESD-sensitive areas in electronics assembly and pharmaceutical quality control labs.
Home workshops and garages. The 750 mm height and 2-5 drawer storage turn a corner into a proper bench for woodworking, electronics, or bike repair — without the cost of a full industrial workbench for hobbyist use.
Sheet metal fabrication and welding bays. The 2,000 kg rated HKM-WB3D with 30 mm solid wood top handles press brakes, spot welders, and medium-duty milling machines — replacing fixed concrete benches with a mobile unit that rolls to the workpiece and relocates when the layout changes.
Electronics assembly and SMT lines. Anti-static (ESD) work top option on the WB3D grounds static discharge safely to earth; the pegboard back panel holds oscilloscopes and soldering stations within arm’s reach of the operator. Compatible with standard wrist-strap grounding points.
Why Choose GXHKM Steel Workbenches?
- One model, full configurability. HKM-WB3D ships with 2-5 drawers, steel/laminate/wood top, and pegboard back — specify per order, no tooling fee above MOQ.
- Heavy-gauge SPCC box-section frame. 1.2-2.0 mm legs and welded braces hold 500-2,000 kg without racking or sway — twice the capacity of standard 50 mm angle-iron benches.
- ISO 9001 / 14001 / 45001 triple-certified. Quality, environmental, and safety systems audited annually by SGS.
- Anti-oil powder coating standard. 80-100 μm film resists grease and workshop humidity — unlike competitors using 40 μm coating that scratches through to bare steel within 12 months.
- Ball-bearing drawers included. 35 kg rated, full-extension, with anti-slip mats and dividers included.
- 10-year anti-rust warranty, written into the contract. Free replacement parts if coating fails inside warranty.
Get a Free Quote Today
Send your quantity, top choice (steel / laminate / wood), drawer count, and target market. We reply with an FOB or CIF quote within 12 hours, plus free sample plan. Email info@gxhkm.com or WhatsApp +86 13263809980. MOQ 10 pcs stock / 50 pcs custom. Lead time 15-25 days stock / 25-35 days custom. Free replacement parts throughout the 10-year anti-rust warranty.
Steel Workbench FAQ
Q1: What is the actual load rating of the WB3D?
Static load ranges 500-2,000 kg depending on frame spec (1.2 mm legs for 500 kg, 2.0 mm for 2,000 kg). Tell us your load and we size the frame accordingly at no extra charge.
Q2: Can I choose a wood top instead of steel?
Yes. HKM-WB3D offers 25 mm laminate or 30 mm solid wood tops in addition to bare steel. Laminate resists solvents and light scratches; solid wood handles impact and can be re-sanded if damaged.
Q3: Are the drawers lockable?
Yes. The 2-5 drawers use a central cam lock as standard, deadbolting all drawers simultaneously. Individual drawer locks are available as an upgrade for orders above 50 pieces.
Q4: What is the MOQ for custom sizes?
50 pieces for a custom size within our standard envelope (width up to 2,000 mm, depth up to 750 mm, height 750-900 mm); 100 pieces for outside-envelope tooling. Stock sizes ship from 10 pieces.
Q5: Do you offer an anti-static top for electronics assembly?
Yes. The ESD top is tested to ANSI/ESD S20.20 standards and includes grounding points compatible with standard wrist-strap testers. Lead time for ESD tops is an additional 5 days; pricing available on request.
Q6: How is the anti-rust warranty claimed?
Email photos of the affected area and your order number to info@gxhkm.com. We ship replacement panels or repaint kits free of charge within 14 working days.
