Product Data:
| Model | HKM-MSC2 |

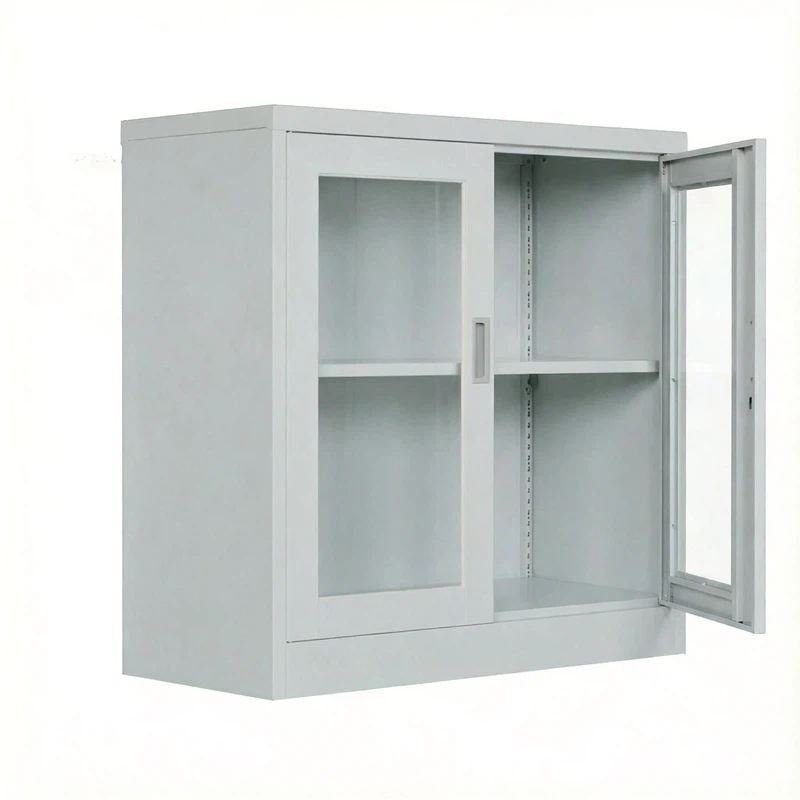

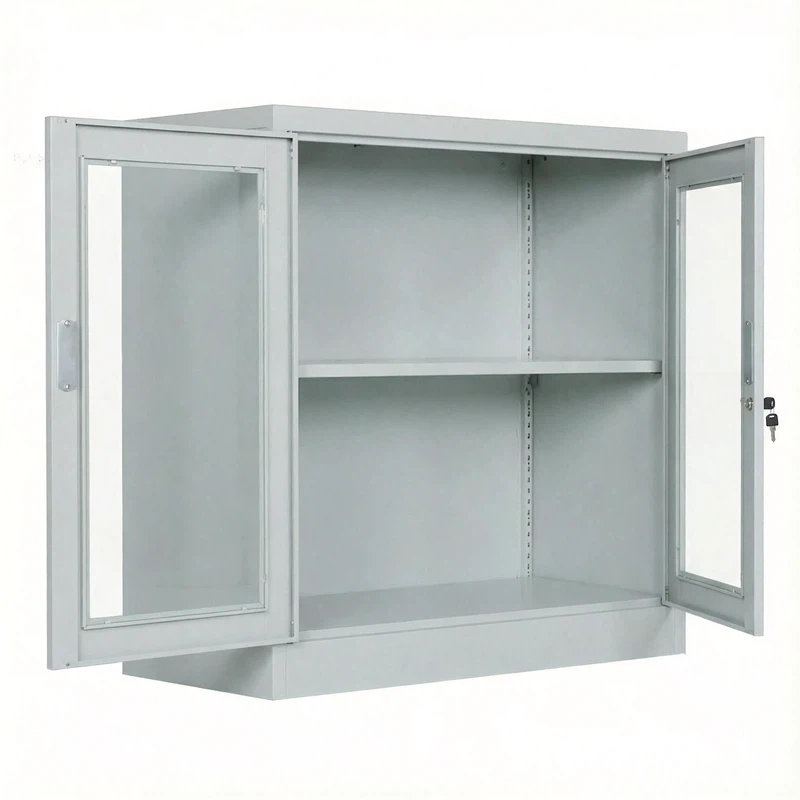

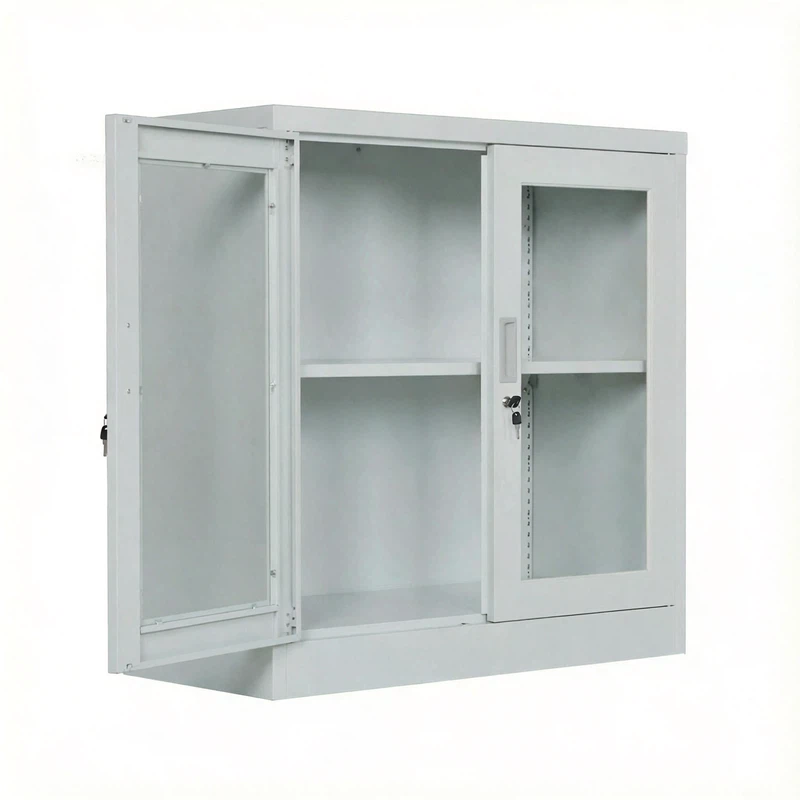

| Name | Metal Storage Cabinets |
| Product Size | H900 * W900 * D400mm |
| Package Size | H930 * W930 * D85mm = 0.0735CBM |
| Loading Qty | 915 Pcs/40’HQ, 376 Pcs/20’GP |
| Material | Heavy gauge cold-rolled steel plate. |
| Pre-treatment | Water wash, chemical wash, phosphating. |
| Finish | Durable electrostatic powder coating. |
| Colour | Classic grey, two-tone option, or other customized colour. |
| Fittings | One shelf. |
| Accessories | 2 keys, assembly screws. |
- Knock-down and easy-assembling construction.
- Different locks available as options

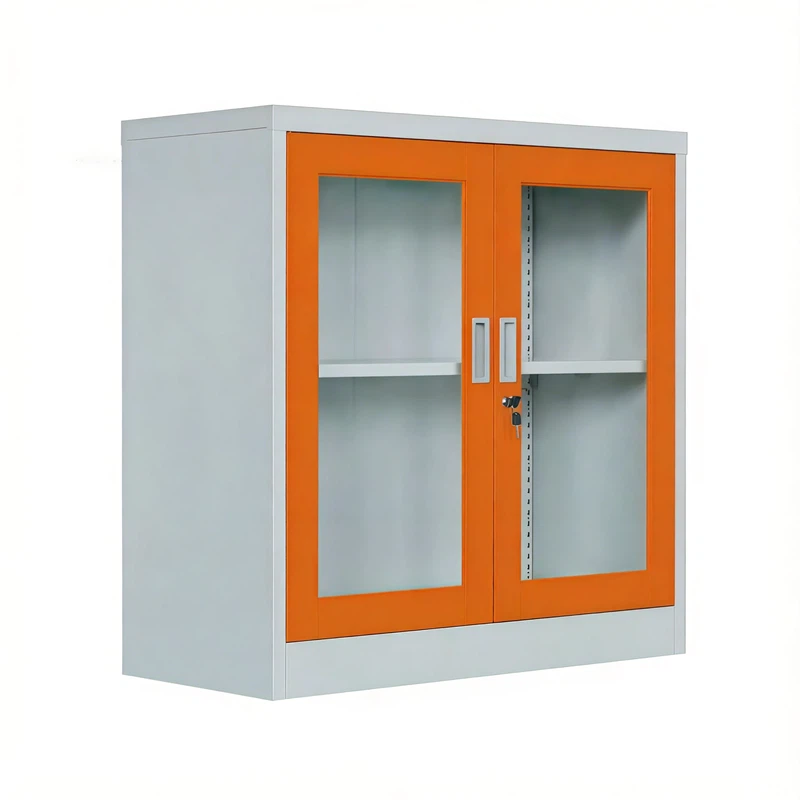

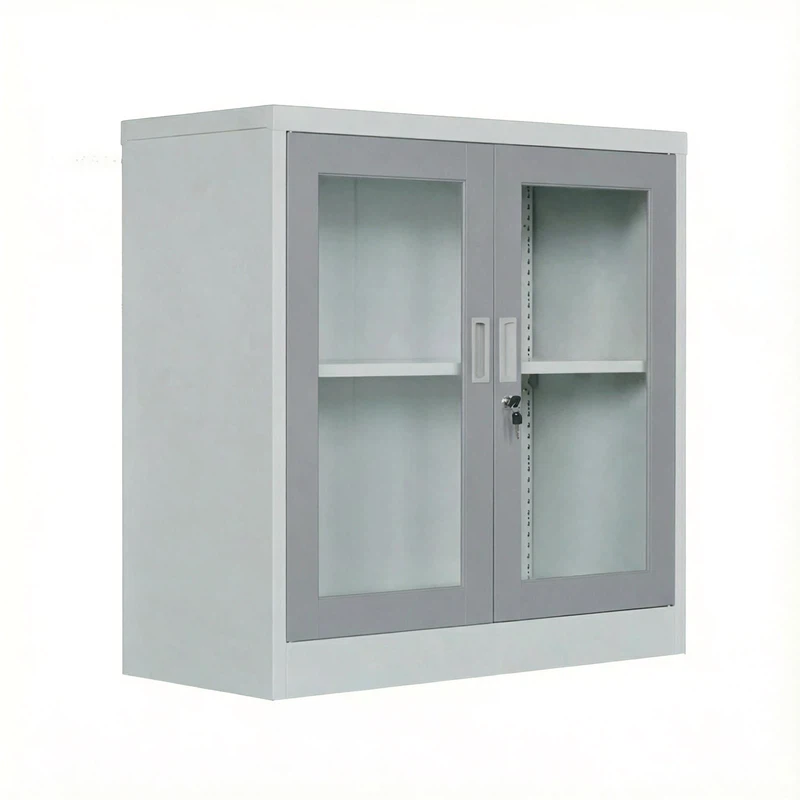

- Different colours available as options.
- Different handles available as options.
- Adjustable shelf.
- Master key available.
- Core-removable key available.
6 steps to assemble the Metal Storage Cabinets.
- Connect the left side and back plate with self-tapping screws (5×12).
- Connect the right plate and back plate in the same way as the first step.
- Fix the door frame onto both of the side plates.
- Install the top and bottom plates.
- Install the shelves.
- Install the doors as shown in the sign; adjust each part until it fits well after installation.
