Product Data:
| Model | HKM-MDFC4-2 |

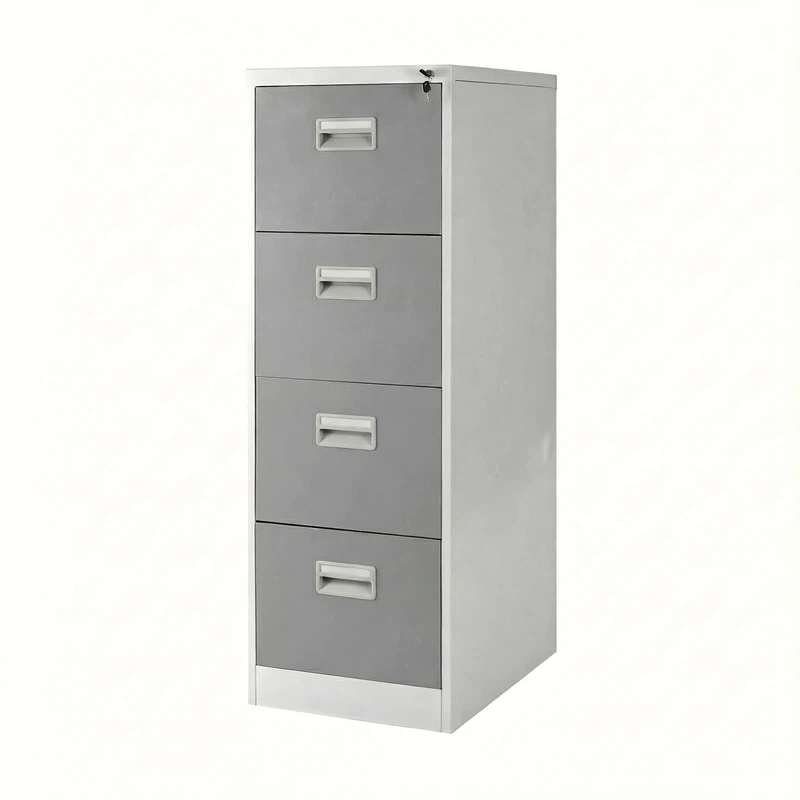

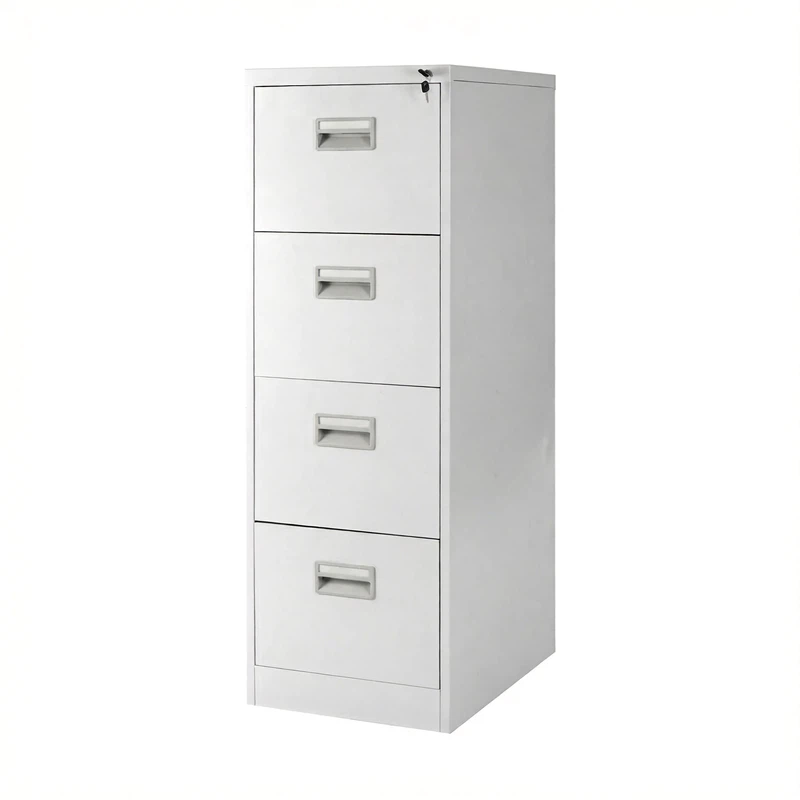

| Name | 4 Drawer Vertical File Cabinet |
| Product Size | H1320 * W460 * D620mm |
| Package Size | H1350 * W650 * D85mm = 0.0751CBM |
| Loading Qty | 630 Pcs/40’HQ, 372 Pcs/20’GP |
| Material | Heavy gauge cold-rolled steel plate. |
| Pre-treatment | Water wash, chemical wash, phosphating. |
| Finish | Durable electrostatic powder coating. |
| Colour | Classic grey, two-tone option, or other customized colour. |
| Accessories | 2 keys, assembly screws. |
- Knock-down and easy-assembling construction.
- Master-keyed central locking system from CYBER LOCK.
- Anti-tilt mechanism allowing one drawer to open at a time for safety purposes.

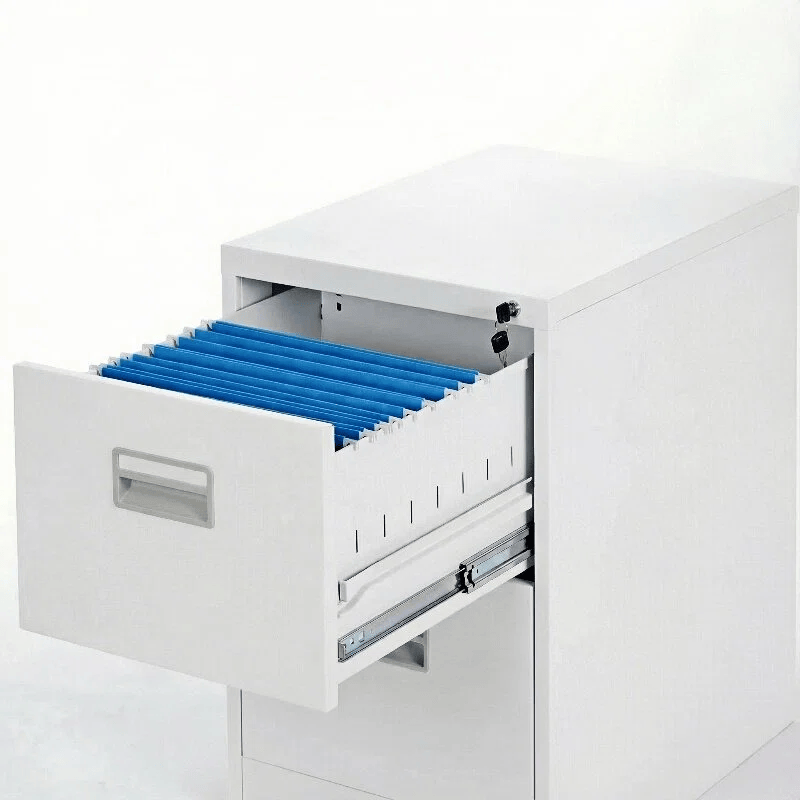

- Smooth full-extension metal ball-bearing runners.
- Internal full-length side strength support.
- 40 kg loading capacity for each drawer.

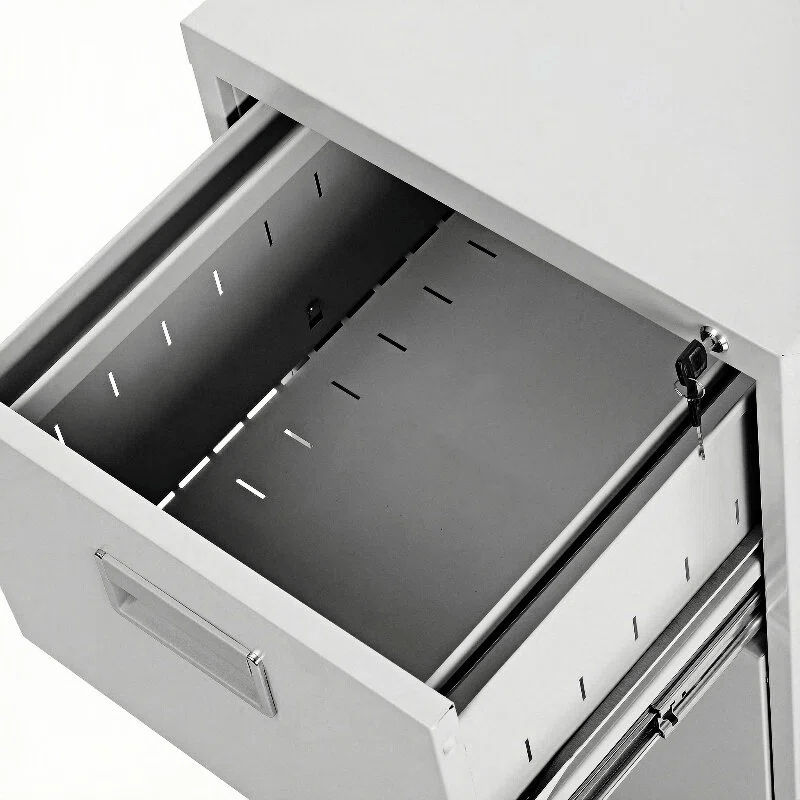

- Movable file bar for adapting to hanging files of different sizes.

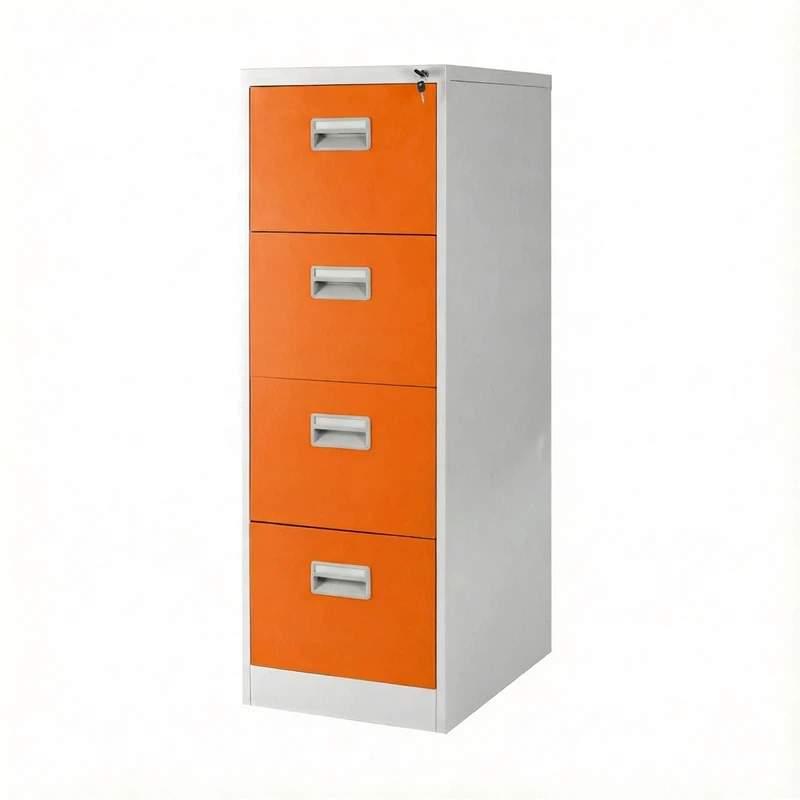

- Different colours available as options.
- Warranty: 10 years.
7 steps to assemble the 4 Drawer Vertical File Cabinet.
- Connect the front and back insert with the left and right side plates using screws.
- Install the back plate from top to bottom.
- Connect the back plate to the left and right side plates using screws.
- Install the top plate as shown in the picture.
- Install the lock rod and holder as shown in the picture.
- Install the outer rails.
- Install the drawers as shown in the picture (lock opening).
